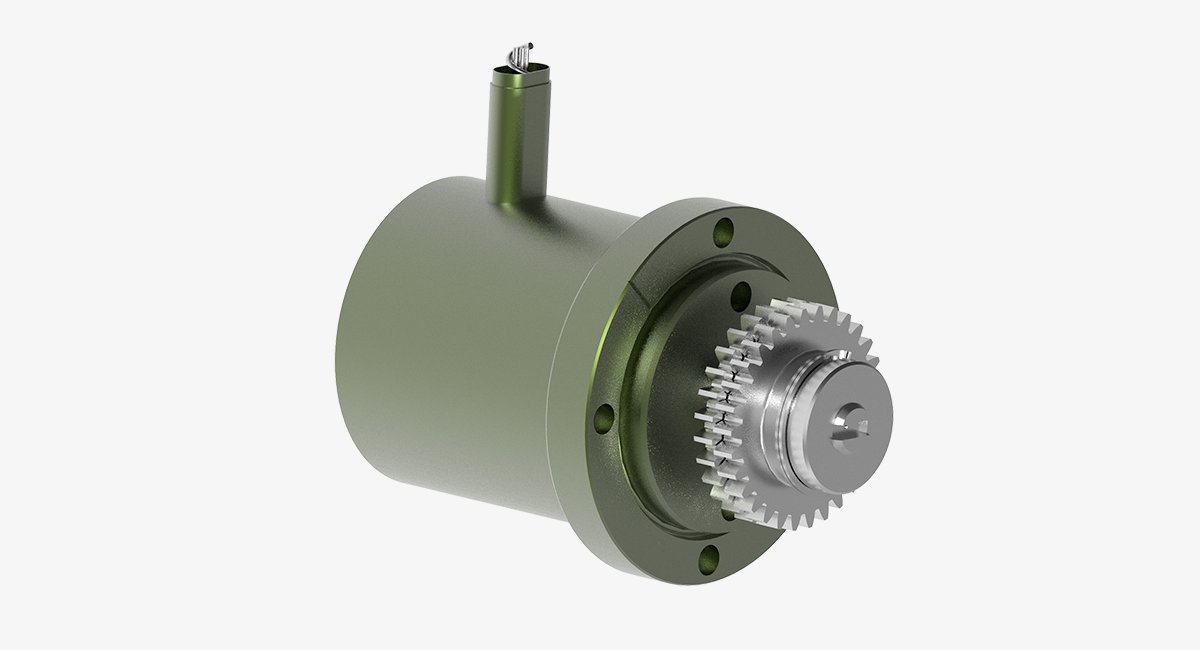

Rotary Variable Differential Transducer Single (RVDTS) has a single rotor-stator assembly and provides a single measurement of its angular position.

It is installed to measure and signal the rudder command actuated by the pilot.

The RVDTS provide output signals that are linearly variable with the angular displacements of input shaft.

This linearity is guaranteed along the required strokes of the sensor. Main features are:

– input voltage 7 Vrms

– power consumption 0.2 W

– operating range +/- 33°
