Flap Control Unit

Flap Control Unit
Product Info

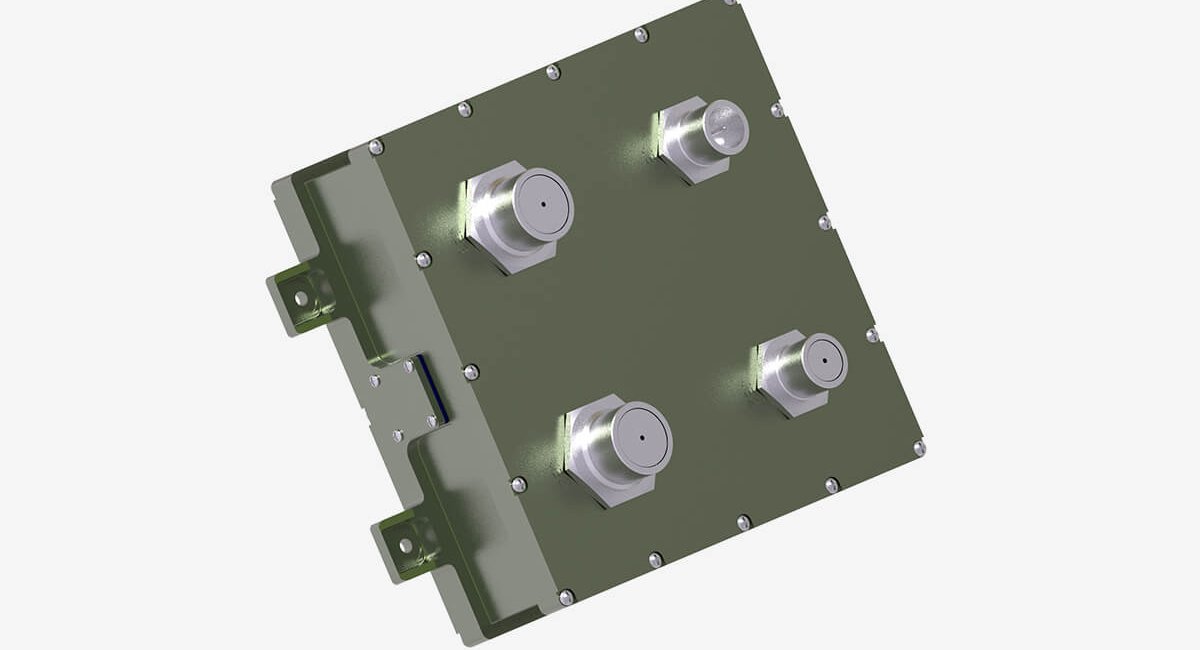

The Flap Control Unit (FCU) is a very simple unit, without microprocessor or programmable logic device, used to control the Flap movements.

The FCU reads from the Flap Selector the Flap angle selected by the pilot and drive the Flap Linear Actuator to reach the position commanded.

The FCU reads the actual position of the Left Flaps and Right Flap, using the Flap Position Transducer and provide these measurements to the avionic.

The FCU continuously monitors Flap asymmetry Failure, Over Speed Flap Failure and generics Flap Control Systems Failures and provided these information to the avionic via discrete signals.

Main features are:

– power supply 28 Vdc

– max absorbed current 15.7 A

Download Datasheet
  • 01. Project type : Civil projects
  • 02. Product category : Electronic Control Unit
  • 03. Customer : PT. Dirgantara Persero - Indonesia
  • 04. TRL : 9
