Brake Hydraulic reservoir
Product Info

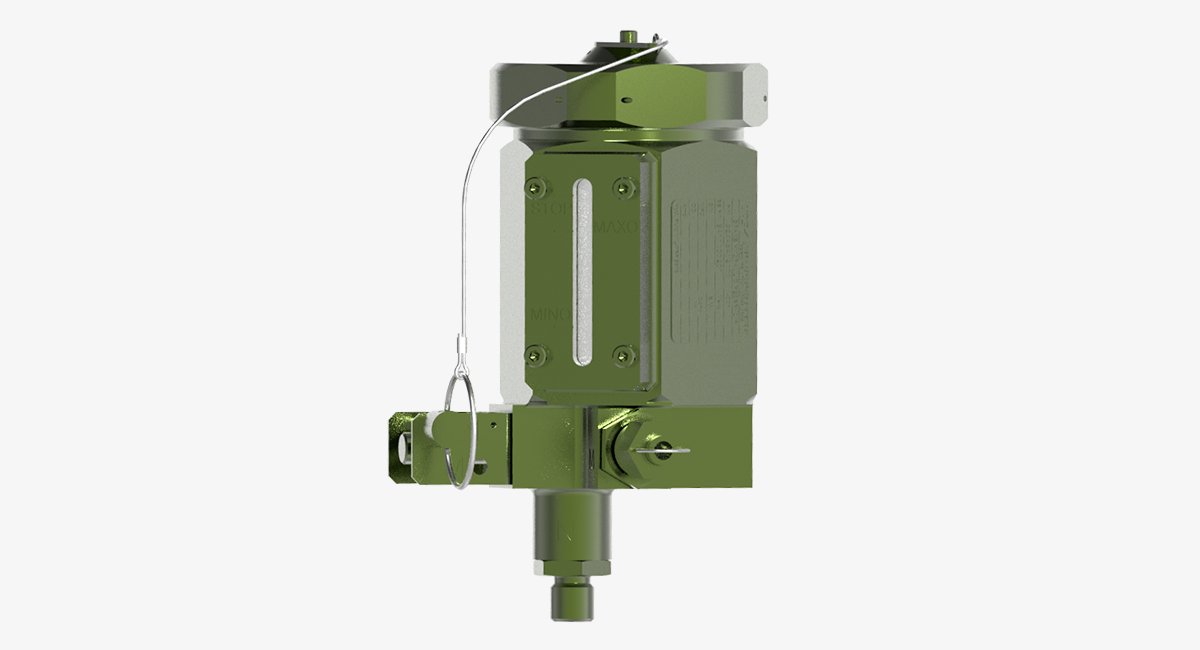

The Brake Hydraulic Reservoir (BHR) is sized to contain hydraulic fluid necessary to actuate the wheel brake system and to compensate external leakage and volume variation under operating temperature.

The BHR directly supplies the hydraulic line that connects pilot and co-pilot brake master cylinders.

The BHR includes a 3-ways, two positions manual Shut Off Valve (SOV) designed to isolate the BHR reservoir during circuit maintenance air bleeding operation.

The (SOV) allows to switch Open/Close Configuration:

– SOV Open: Normal. The reservoir is connected both to the brake circuit both to The Maintenance.

An aluminum plug, installed on Maintenance Port during Open Configuration, isolates the MBC.

– SOV Closed: Maintenance. The maintenance port is connected to the brake circuit. The reservoir is isolated.

Download Datasheet
  • 01. Project type : Civil projects
  • 02. Product category : Hydraulic Systems, Hydraulic valves
  • 03. Customer : Dornier Seawings
  • 04. TRL : 9
