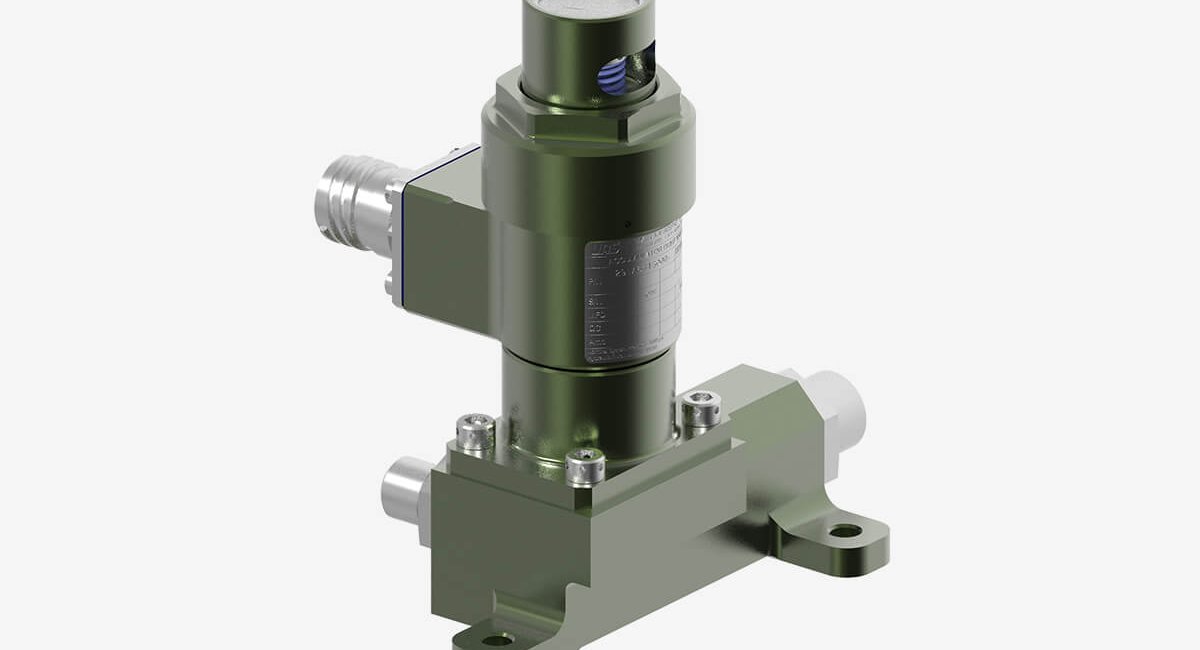

Accumulator Dump Manifold

Accumulator Dump Manifold
Product Info

The main functions of the Accumulator Dump Manifold (ADM) are:

– to dump the Hydraulic Accumulator on the pressure line connected with ADM, with manual or electrical command.

This function is performed by the Solenoid valve (SV) integrated that is a Normally Close (NC) valve.

– to allow system pressure decrease toward Return line in case of system over pressure, by means of the Thermal Relief Valve (TRV) integrated.

The TRV integrates also a filtering function by means of a screen installed in the same sub assembly.

The filter screen cannot be replaced without replacing the whole valve within overhaul.

Download Datasheet
  • 01. Project type : Military projects
  • 02. Product category : Hydraulic Systems, Hydraulic valves
  • 03. Customer : Turkish Aerospace
  • 04. TRL : 8
