Engine Driven Pump

Engine Driven Pump
Product Info

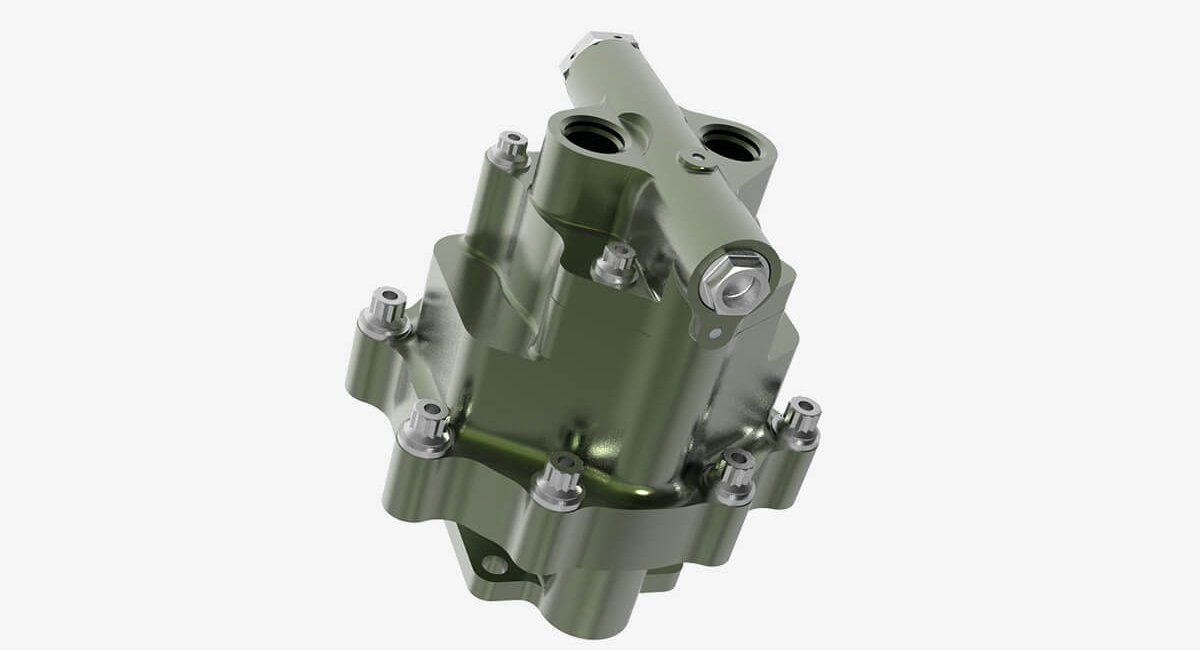

The Engine Driven Pump (EDP) is a variable displacement, axial piston type pump.

The designed EDP comply with SAE AS19692. The hydraulic pump has been sized considering a maximum flow rate of 5 gpm (18.9 l/min), a nominal input speed of 6500 rpm and an output pressure of 2900 psi (200 bar).

The pump is able to operate with an input shaft speed within the range 3000÷9000 rpm.

Download Datasheet
  • 01. Project type : Military projects
  • 02. Product category : Hydraulic Systems, Hydraulic valves
  • 03. Customer : Calidus Aerospace
  • 04. TRL : 8

Download Datasheet
